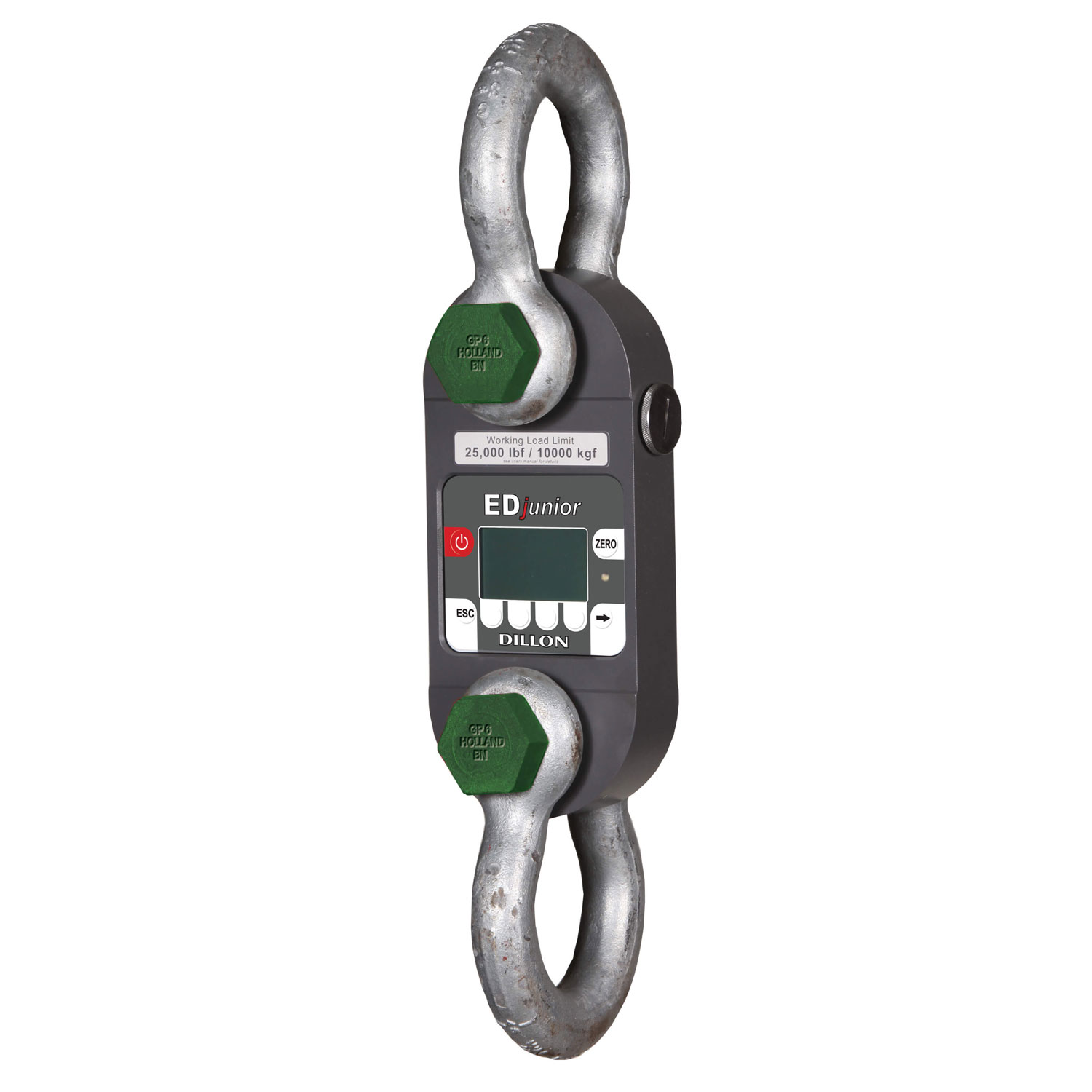

Dillon EDjunior Dynamometer 10T 25000 lb with Shackles | AWT05-506320

The EDjunior 10T provides the optimal balance of maximum capacity, precision, and value for 25,000-pound applications requiring professional electronic measurement. With ±0.2% accuracy, it delivers significantly better precision than mechanical alternatives while maintaining cost-effective pricing for heavy-duty operations. The 20-pound resolution ensures adequate granularity for major construction, transmission, and heavy industrial applications. The complete package with Green Pin shackles, carrying case, batteries, and calibration certificate provides immediate deployment capability for professional operations requiring reliable heavy-capacity force measurement documentation.

The EDjunior 10T's ±0.2% accuracy provides ±50 lb uncertainty at full capacity compared to ±125 lb uncertainty typical with mechanical models. This enhanced precision improves safety margins, reduces measurement uncertainty, and provides superior documentation for quality control and liability protection in heavy-duty applications. The digital display eliminates parallax reading errors, pointer bounce, and mechanical friction issues that affect mechanical systems. For professional applications requiring documented precision in heavy-capacity operations, the electronic accuracy provides significant operational advantages and improved measurement confidence.

The EDjunior 10T provides essential electronic measurement capabilities at practical pricing for heavy-capacity applications, while the EDXtreme series offers premium features for extreme applications. Key differences include: EDjunior offers ±0.2% accuracy (vs. ±0.1% EDXtreme), standard data logging (vs. 255 timestamped logs), basic communication (vs. radio/multi-unit capability), and NEMA4X/IP55 protection (vs. IP68 submersion rating). The EDjunior focuses on core electronic advantages—digital accuracy, peak hold, and data stability—without advanced features needed only in extreme-capacity or specialized applications requiring premium functionality.

The included high-quality C-cell alkaline batteries provide 425+ hours of typical operation, translating to weeks of continuous use or months of intermittent deployment in heavy-duty applications. Battery life depends on backlight usage, environmental conditions, and operating patterns. Low-battery warnings provide advance notice for planned replacement. Standard alkaline C-cells are readily available worldwide, eliminating specialized battery requirements. The side-loading battery compartment allows quick field replacement without tools or calibration loss during extended heavy-capacity operations.

The EDjunior 10T accommodates heavy-duty rigging hardware through the included Green Pin shackles or custom hardware configurations. The 1.97" shackle opening accepts standard pins and hardware common in 25,000-pound capacity operations. However, for optimal accuracy and safety, Dillon recommends using the included factory-supplied shackles that were used during calibration. Alternative hardware should be properly rated for the application loads and verified for compatibility with the dynamometer's mounting configuration and accuracy specifications for heavy-capacity applications.

The EDjunior 10T features NEMA4X/IP55 environmental protection suitable for continuous outdoor use including rain, dust, and demanding job site conditions typical of heavy construction and industrial environments. Operating temperature range from -4°F to 158°F (-20°C to 70°C) covers typical construction and industrial environments. The sealed enclosure protects against water spray and dust ingress while maintaining calibration stability during extended heavy-duty operations. For applications requiring submersion capability or extreme environmental conditions, the EDXtreme series provides enhanced IP68 protection ratings and extended environmental capabilities.

Each EDjunior includes a calibration sticker showing the current certification date and next due date for easy tracking. Standard calibration intervals are typically 12 months, though specific requirements may vary based on usage patterns and regulatory needs for heavy-capacity applications. Send your EDjunior to Dynamic Measurement Systems in Houston for factory-authorized calibration using NIST-traceable standards. We provide detailed certificates with actual measurement data and maintain comprehensive service records for your quality management systems and regulatory compliance requirements in heavy-duty applications.

The included Green Pin shackles are professional-grade anchor shackles specifically rated and sized for 25,000-pound capacity operations with appropriate safety factors for heavy-duty applications. These shackles were used during factory calibration, ensuring optimal accuracy and performance. Green Pin shackles meet stringent quality standards and provide reliable connection points for professional heavy-capacity rigging operations. Using factory-supplied shackles maintains calibration integrity and ensures compatibility with the dynamometer's mounting configuration and accuracy specifications for documented precision in demanding applications.

Yes, the EDjunior 10T is well-suited for proof load testing applications up to its 25,000-pound capacity. The 150% proof load rating (37,500 lbs) allows testing at standard proof load requirements without damage to the instrument. The ±0.2% accuracy provides documentation-quality measurements for certification and compliance purposes in heavy-duty applications. Peak hold capability captures maximum loads during dynamic testing, and the digital display eliminates reading errors common with mechanical instruments during critical testing procedures requiring precise documentation for heavy-capacity operations.

The exclusive Dillon SOFTKEY interface provides direct access to functions without navigating complex menu structures common in competitive instruments. Soft keys change function based on current operation, providing intuitive access to relevant controls for heavy-capacity applications. The 6-digit dot-matrix display clearly shows function labels above each key, eliminating guesswork during demanding operations. This interface reduces training time, minimizes operator errors, and provides a professional appearance for customer-facing applications where ease of use and reliability matter in heavy-duty environments.

The EDjunior 10T includes intelligent overload protection with 200% safe overload rating and ultimate overload protection of 500% to prevent permanent damage during heavy-capacity operations. Overload events are automatically recorded with date and time stamps for maintenance tracking. Visual warnings alert operators when approaching capacity limits. Brief excursions beyond rated capacity typically don't require recalibration, but sustained overloading may affect accuracy. The robust E4340 alloy steel construction minimizes damage risk in heavy-duty applications, but proper operating procedures ensure long service life and maintained precision.

Yes, Dynamic Measurement Systems provides comprehensive technical support for EDjunior applications from factory-trained technicians with extensive force measurement experience in heavy-capacity applications. Our team offers application guidance, setup assistance, and troubleshooting support without sales pressure. We understand the specific requirements of major construction, transmission, and heavy industrial applications and provide honest recommendations for your unique needs. Technical support includes calibration scheduling, maintenance guidance, and application-specific training when required for optimal results in demanding heavy-duty operations.
